Project Coordinated by Miya SJames Hardie Siding Replacement Project in Tualatin, OR

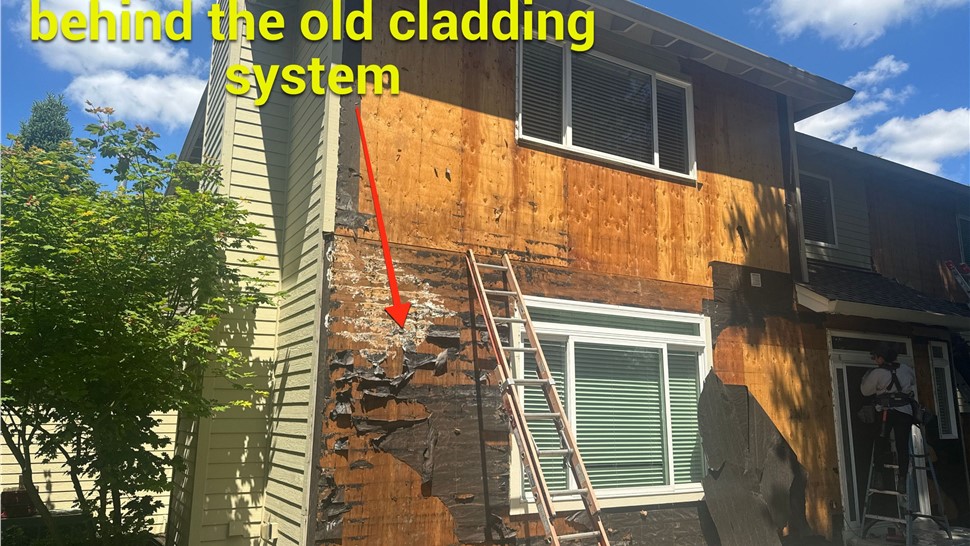

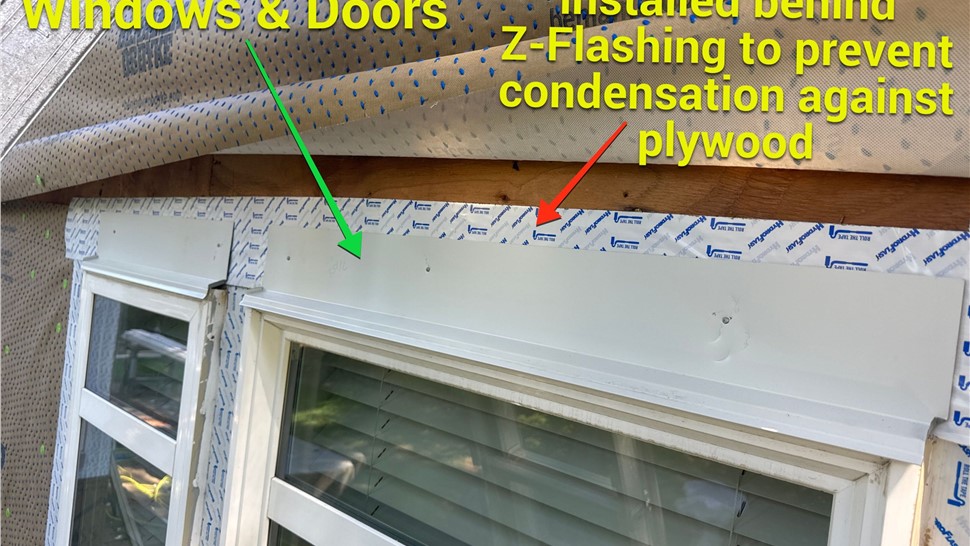

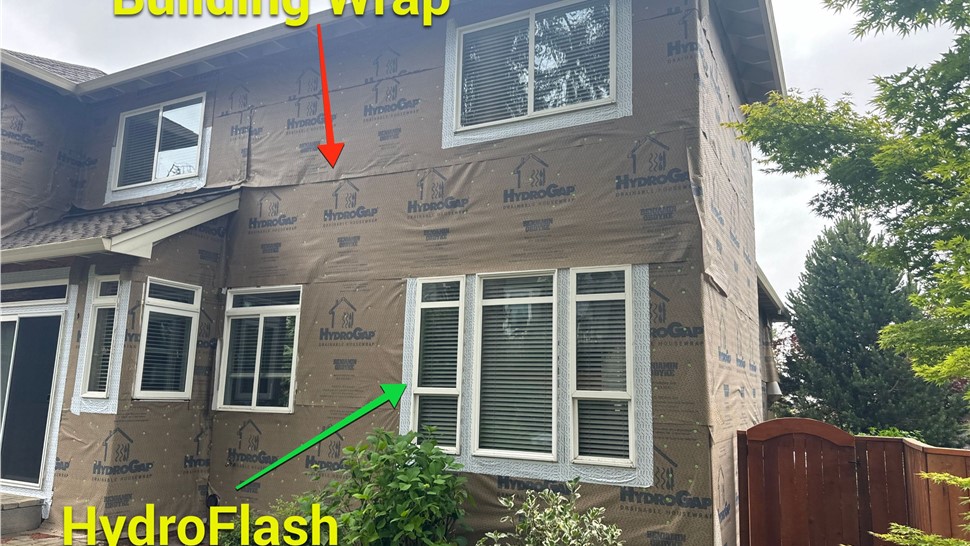

Scope of Work: We replaced the old worn-out siding on this home with our KVN Elite James Hardie Siding System. During the demo phase we found some dry rot and provided a great solution to fix the rot for the client. After the demo phase was completed, we installed the HydroGap building wrap system with HydroFlash tape around windows and doors (HydroGap comes with its own 20-year manufacturer warranty). Once the home was waterproofed, we continued by installing Primed James Hardie Trim around all the windows and at outside / inside corners. Each window received our KVN Double Z-Flashing System to ensure water does not leak around the windows, preventing future waterproofing issues. We then installed James Hardie lap Siding with a 5" reveal, Hardie Shake in the gables, and caulked using the James Hardie Preferred Quad Max sealant. Once the siding system was wrapped up, we cleaned the property and proceeded to wash the entire exterior, prep the home, and apply a 2-coat Sherwin Williams Paint System with a Satin Sheen.
Products Used on this Project:
Siding Manufacturer: James Hardie
Siding Profile #1: 5" James Hardie Lap Siding
Siding Profile #2: James Hardie Straight Shake
Siding Texture: Cedarmill
Trim Profile #1: 5/4 x 4 James Hardie Trim (Windows, Doors, & Outside Corners)
Trim Profile #2: 5/4 x 8 James Hardie Trim (Belly Bands)
Trim Texture: Rustic
Paint Manufacturer: Sherwin Williams SuperPaint (Exterior Acrylic Latex Paint)
Paint Sheen: Satin
Lap Siding Color: SW 7506 Loggia
Shake Color: SW 9174 Mothwing
Trim & Door Color: SW 7008 Alabaster
